Upgrade of access to filters at the El Prat desalination plant
Barcelona
The El Prat de Llobregat desalination plant features 20 closed, pressurized filters for seawater filtration for various stages of drinking water purification.

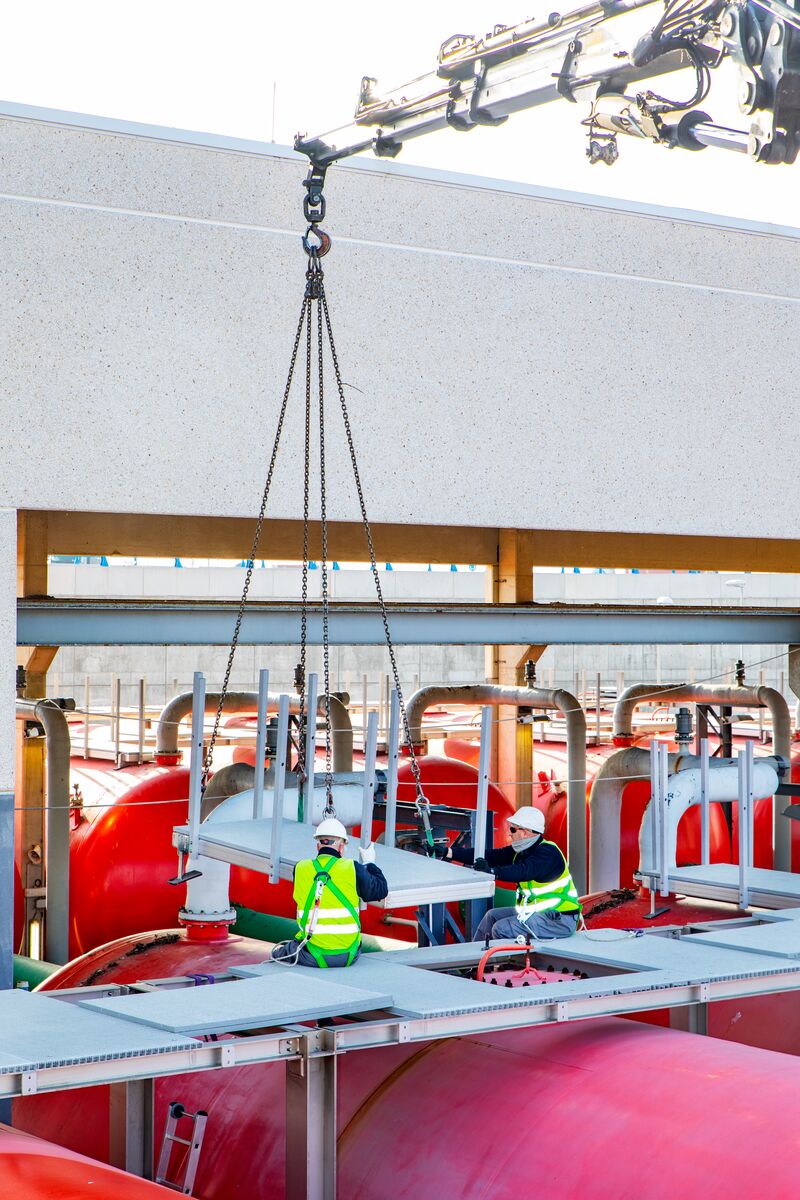

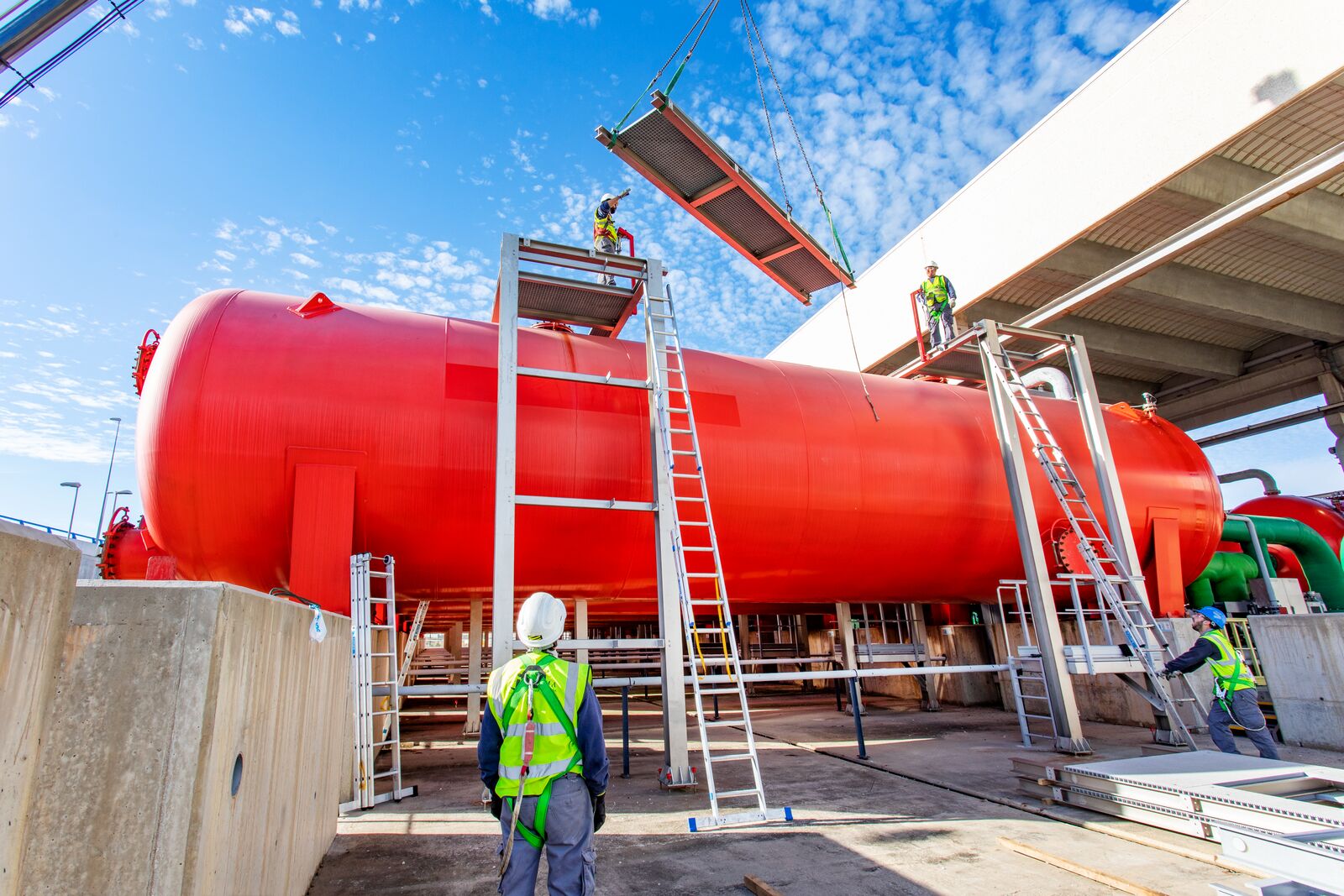

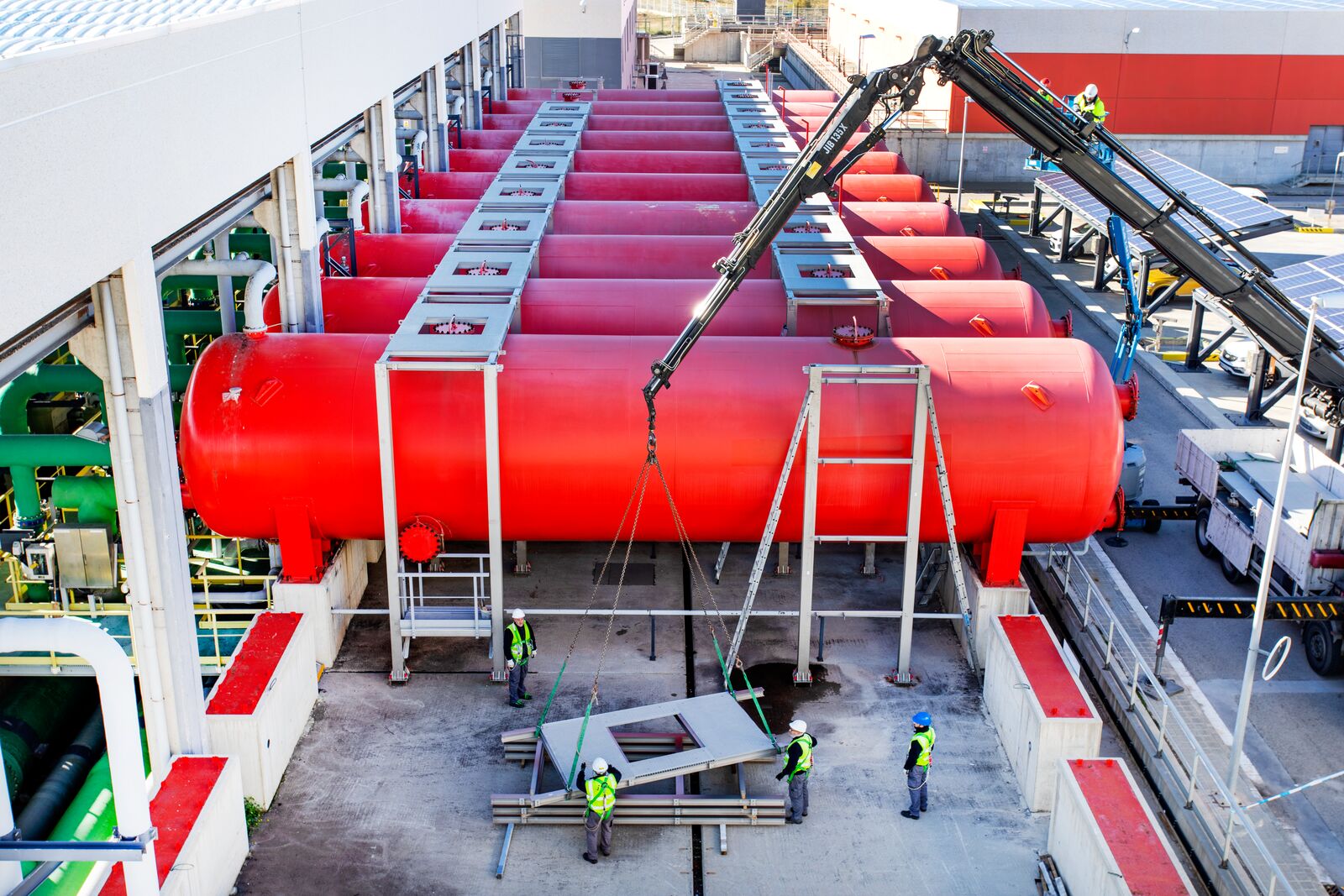

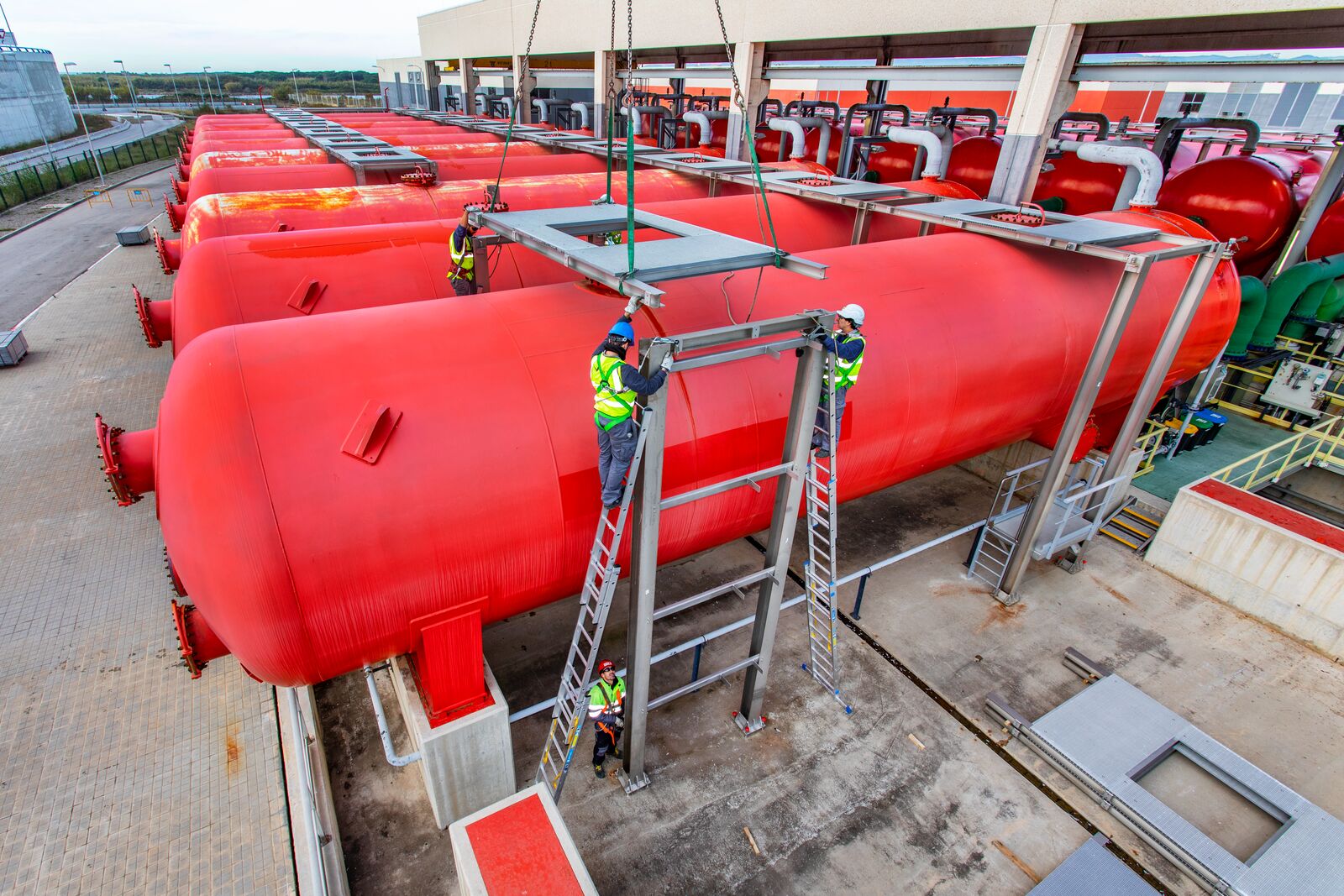

This project involves the design, manufacture, and installation of all necessary structures to access the lateral manholes, upper manholes and air valves of the 20 filters, enabling maintenance work without the need for auxiliary equipment.
In total, a 70-tonne structure, a 700-meter-long guardrail, and 465 square meters of anti-slip grating, certified for fire and abrasion resistance, are manufactured and supplied. Additionally, two three-level staircases and 20 ladders are installed to facilitate access to the pit.
Project
Client
Ens d'Abastament d'Aigua Ter-Llobregat
Period
September 2018 – February 2019
Works
Design, manufacture and assembly of the structure for accessing the lateral and upper manholes and valves of the 20 closed filters at the desalination plant in El Prat.
Technical data
Structure
- Material: AISI 316L
- Main profiles: HEB-200 and HEB-120
- Weight: 70 t

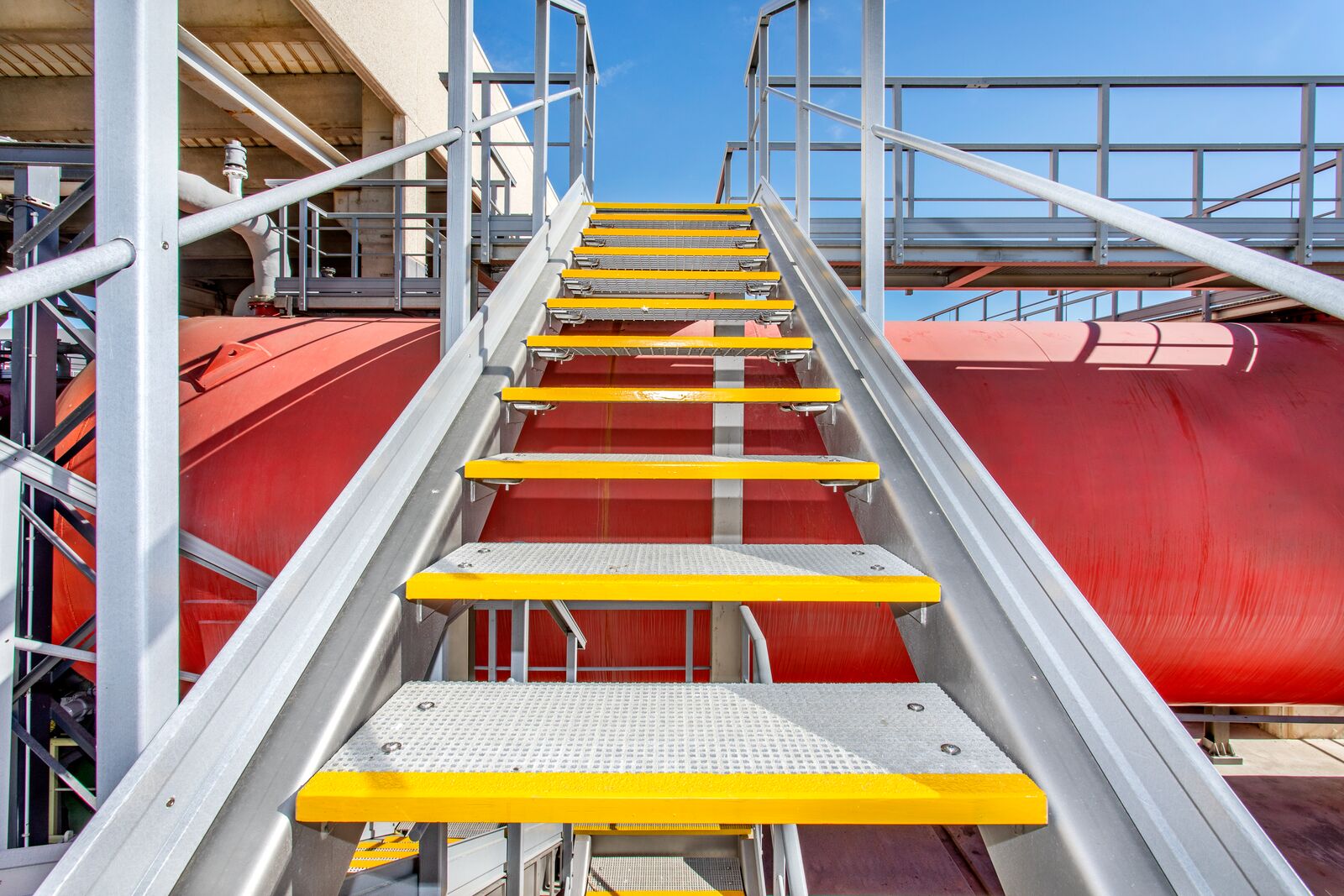

Stairs
- Two sets of staircases with three levels each, made of AISI 316L and formed by UPN-220 main profiles.

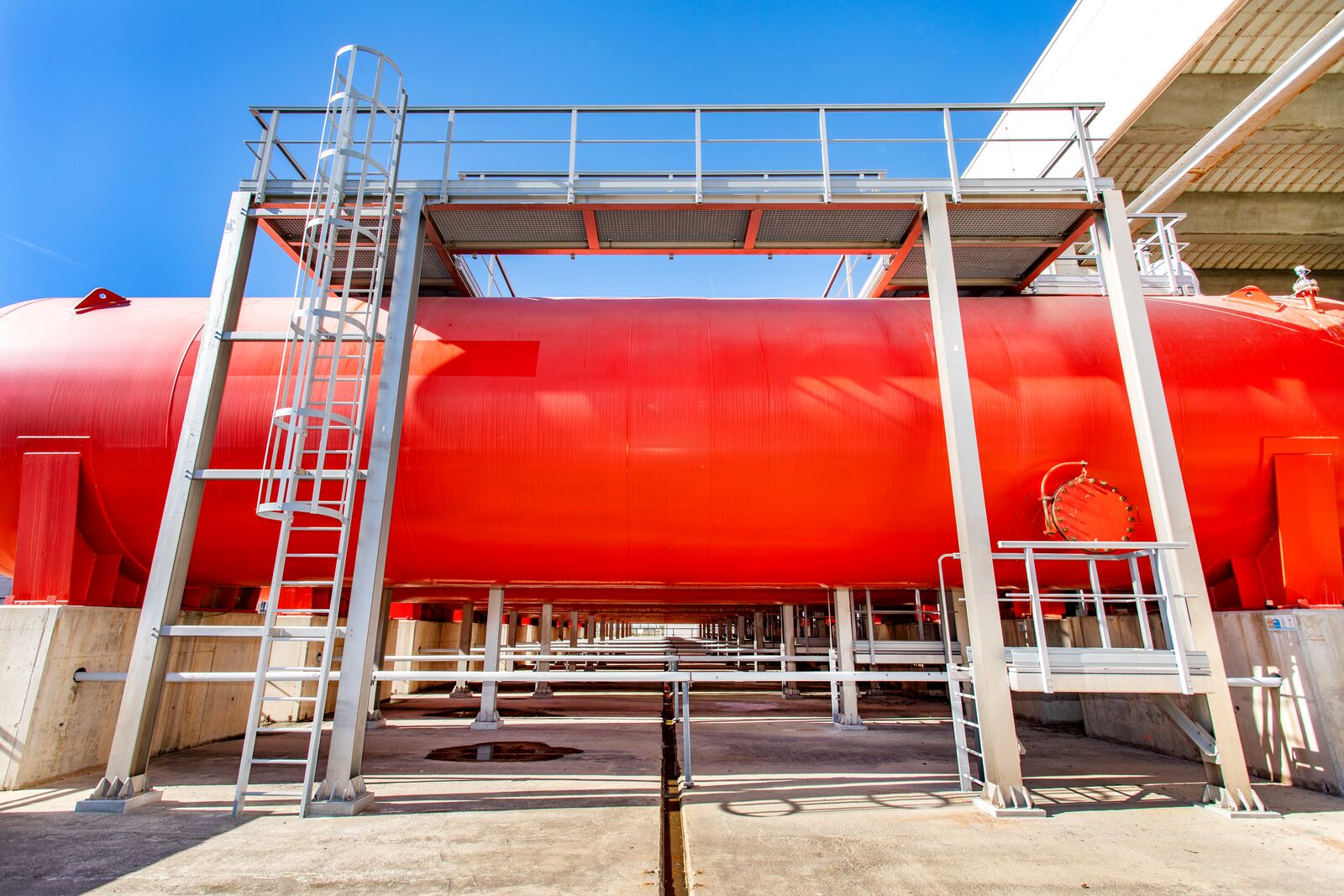

- 20 ladders for access to the pit made of AISI 316L and formed by UPN-160 type profiles.
Guardrail
700 m of guardrail made of GFRP with AISI 316L fasteners.

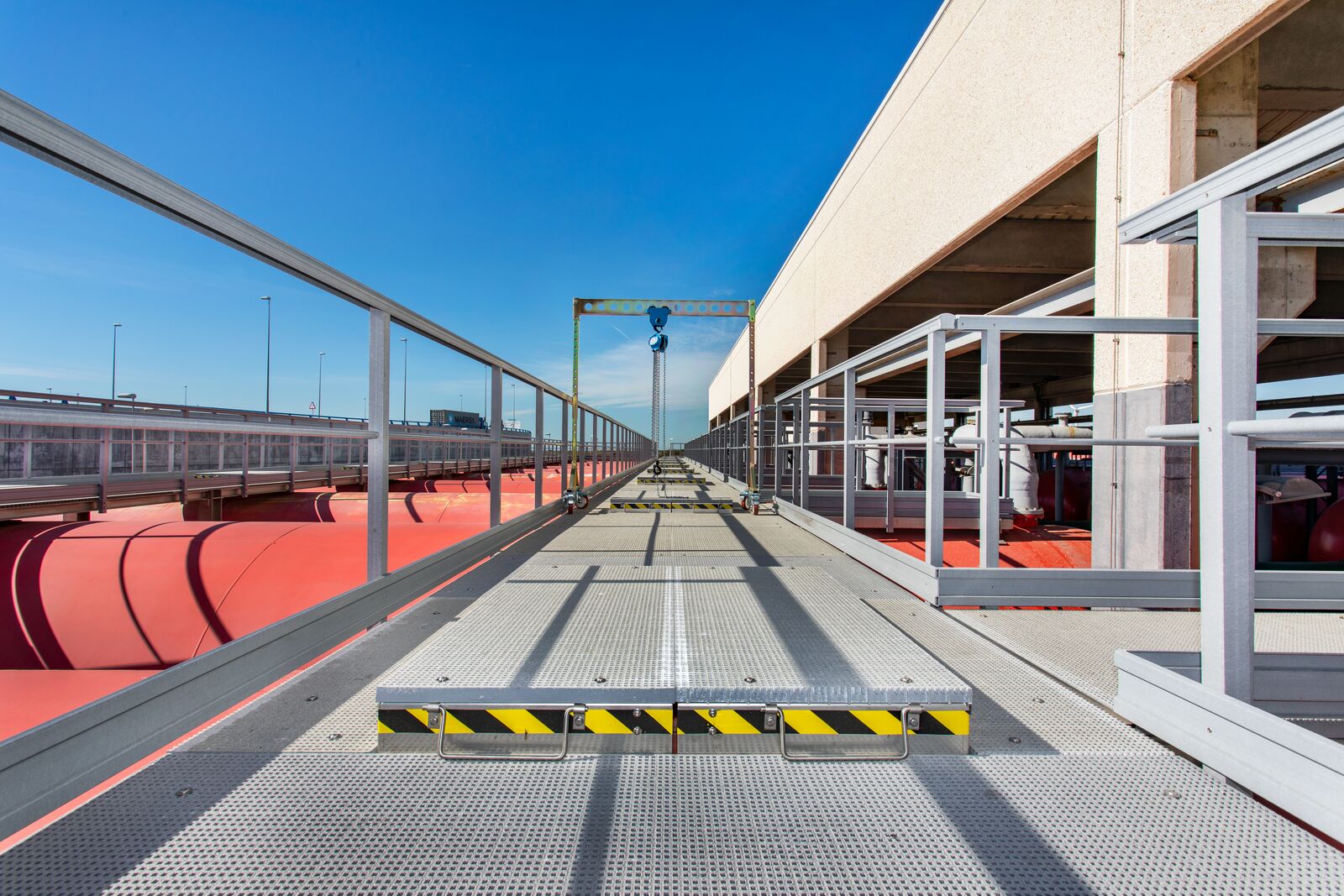

Grating
465 m2 of non-slip GFRP grating made of silica sand with 7 mm mesh and AISI 316L fixings.
